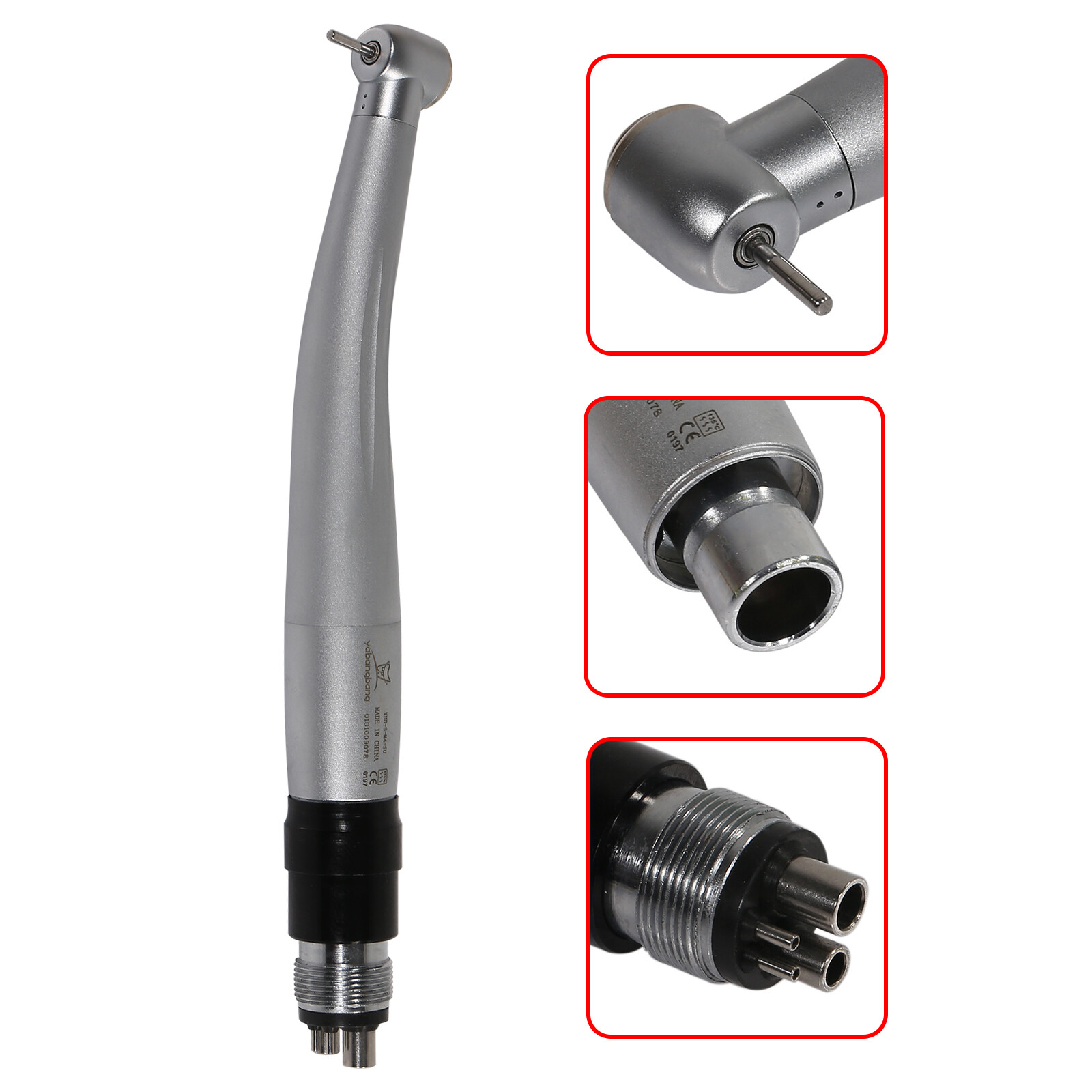

Dental High Speed/led E- Generator

High Speed YDNK4 No LED:

Technical data:

1.Chuck type : push button

2. Applicable bur Φ1.595-Φ1.600

3.Single Water Spray, Steel bearings

4.Head hight : 14.25mm

Head diameter :φ13mm ( large head)

Handpiece length : 107.56mm

High Speed YDNK4 LED:

Feature:

1. This is a dental High Speed handpiece with Quick Coupler 4 holes which is fit NSK QD-J High Speed Handpiece

2.Both handpiece and quick coupling are autoclavable, which is suitable for disinfection of high- temperature steam at 135℃ ,conform to modern clinical requirement.

3.self-sufficient power system instead of extra supply

4. clear view with day-light LED

5. Fit NSK 4H Quick Coupler

Technical specification：

Body size：L107.56mm

Head size：Ø 13 * H14.25mm

Bur size：Ø 1.6mm

Torque：0.18 -0.21 Nm

Chuck：push button

light：LED

illumination：4500mcd

light temperature：3500-5000k

light beam：concentrated

Air Pressure：0.22– 2.5 MPa

Rotate speed：300,000 – 400,000 r.p.m

Dental LED 45 Degree Fiber Optic High Speed Handpiece E-generator 4 Hole

Features:

Vibration Free, Heating free. and high illumination

Low Noise, Standard Head with Fiber Optic LED Light

Can be used without fiber optic system

Back siphonage prevention sanitation handpiece

Push button/wrench chuck system

Technical Data:

Speed: 25000-35000R.P.M

Air consumption: 55L/min

Cartridge: Unenclosed, push button

Bearing: Ceramic

Illumination: 4500-4800mcd

Light Temperature: 3500-5000K

Light Beam: Concentrated

Operating air pressure: 0.25-0.3Mpa (0.3MPa preferred)

Noise level: ≤70 dB

Sterilization by autoclave at (135) °C

Chucking power: 20-45N

Net weight: 88g

Bur Applicable:Φ1.60（ISO）

Package Content:

1 x 45 Dgree LED Handpiece 4/2 Hole

1 x Cap wrench

1 x Needle

1 x English Operation Manual

Product features:

l Air Exhausted Throw at the Back of Handpiece to Prevent subcutaneous air bags

l Working air-pressure: 0.20Mpa-0.22Mpa (recommended 0.20Mpa)

l Speed : ≥280.000R.P.M

l Spray: single water spray

l Applicable bur: ∅1.595 -- ∅1.600mm

l Chucking power: 25-45N

l Noise level: <70 dB

l Net Weight: 65g

l Clamping means of bur: Push button

l 45 degrees nose, applied impacted tooth surgery
